Assembly Made Simple
• 3 minutes
• No other tools required

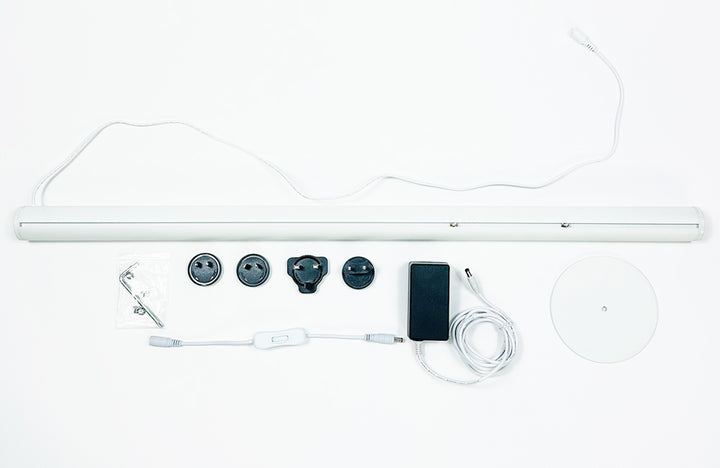

The lighting unit is prepared for use; simply affix the disc mount using the provided M5 Torx screw and 6-point star tool.
Wire Mount Installation
• 5 minutes
• Some other tools may be required
Simply screw the wire mounts into the rack mount sliders located on the top side of the Plumes. The steel wire length is 650mm, and a carabiner allows for easy connection to a rack, hook or hanging point above.
Wall Mount Installation
• 20 minutes
• Other tools will be required
First, securely fasten one of the wall mounts onto the selected surface. Then, measure 800mm from the inside of the fixed mount to the inside of the next mount and install it accordingly.
Next, position the lighting unit in place and use the provided M5 Torx screws and 6-point star tool to affix the unit to the mounts.
For optimal results, we recommend beginning with an ideal distance of 900mm/2.95ft between your light module and your plant.
